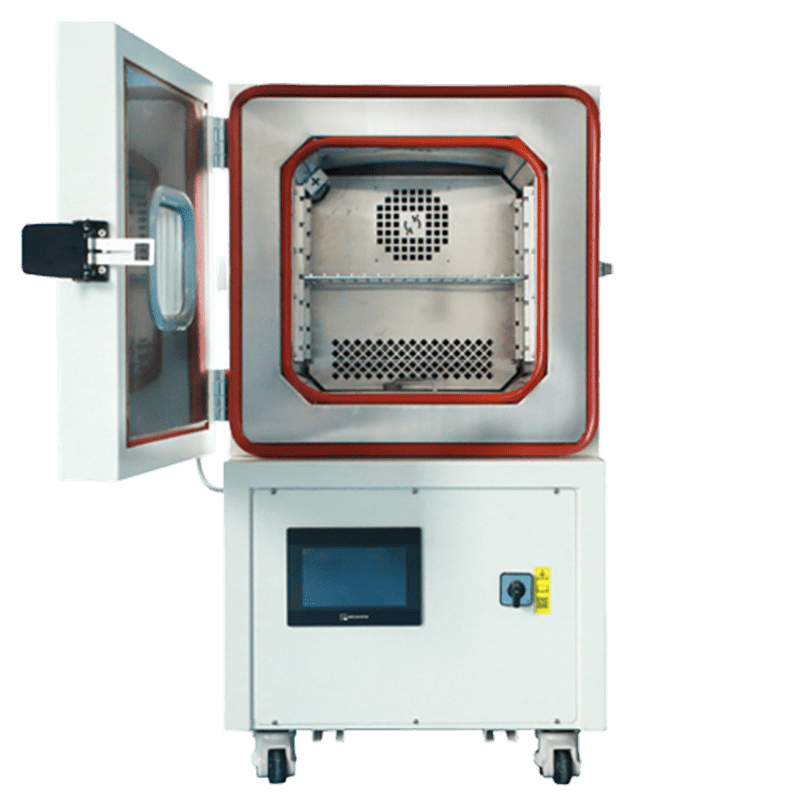

Benchtop Temperature Test Chamber

The DHT® Benchtop Temperature Test Chamber is purpose-built to overcome laboratory space constraints and the challenges of testing micro-scale samples. Despite its compact form, it delivers the same high precision as full-size chambers, making it a revolutionary tool in modern scientific research and education. From weather resistance validation of automotive electronics to vaccine cold-chain simulation, and from thermal stability testing of new materials to lifespan assessment of precision instruments, this chamber embodies “small footprint, big capability,” and has become indispensable in early-stage product validation and academic experimentation.

Benefits

Flexible Deployment: Operates on standard 110V–220V power, removing the need for industrial power sources and enabling use in universities, labs, and other non-industrial settings.

Precision Control: Equipped with a high-accuracy temperature regulation system offering ±0.5°C to ±0.1°C stability, ensuring data reliability and repeatability for cutting-edge research.

Space Optimization: Compact body supports stacking; footprint is under 0.5 m², maximizing lab space utilization. Portable design adapts easily to tight environments.

Quiet and Eco-friendly: Ultra-low noise and vibration-free operation, suitable for use alongside sensitive instruments and in quiet working environments. Energy-saving design minimizes operational interference.

Versatile Applications: Ideal for testing biological samples (cells/tissues), precision components, and new materials. Supports extreme temperature/humidity simulations and PC connectivity.

Features Video

Specifications

Temperature Range (°C) 0~180;-20~180;
-40~180;-65~180;-70~180
Temperature Uniformity (°C) 16L:±0.5~±2.0;27L/50L/100L:±0.5~±1.5
Temperature Fluctuation (°C) 16L:±0.3~±1.027L/50L/100L:±0.1~±0.5
Heating Rate (°C/min) 2.0~3.0
Cooling Rate (°C/min) 0.7~1.0
Load Capacity (kg) 15
Noise Level (dB(A)) 16L:52
27L:54
50L/100L:56
Power Supply 220V±10% 50HZ
Power (kW) 16L/27L:1
50L:1.8
100L:2.2
Cooling Method Air Cooling
