Testkammer für Sand und Staub

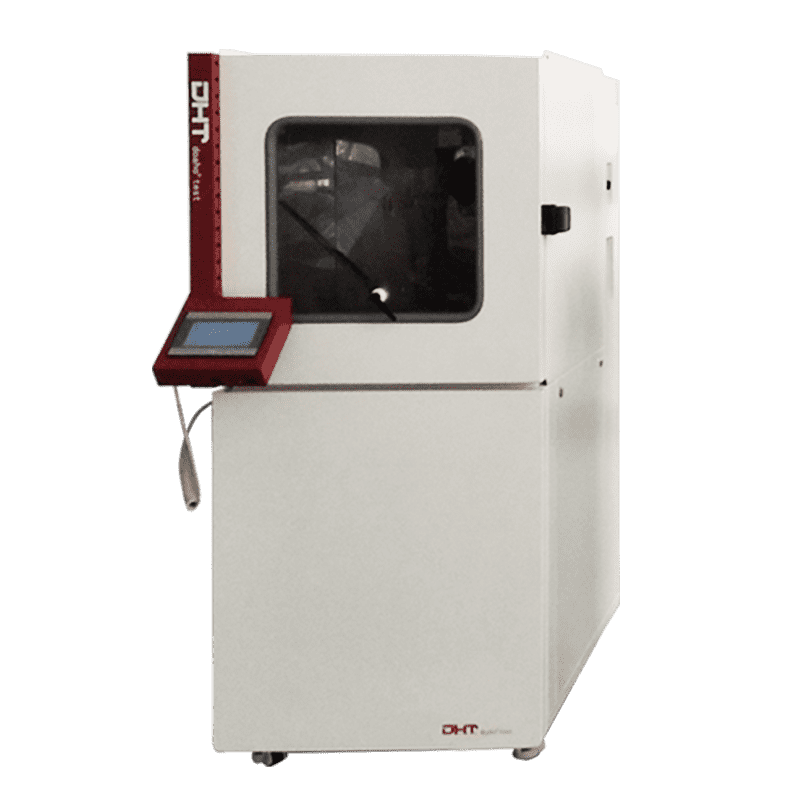

The DHT® DHSD Series Sand & Dust Test Chamber is a device specifically designed to test the dust and water resistance of products. It is widely used to evaluate the performance and safety of samples under harsh environmental conditions, particularly in high humidity or dusty outdoor and special regional environments. This series of test chambers can simulate various high wind-speed sand and dust environments, making it especially suitable for testing the sealing performance of product enclosures, in compliance with protection ratings IP5X and IP6X, ensuring the products can effectively resist dust and moisture intrusion.

0/5 (0 Reviews)

Vorteile

Modular Design: The test chamber adopts a modular design, making installation simple. Users can quickly configure and install the system according to their specific needs.

Reliable Operation Under Extreme Conditions: The equipment is specially designed for use in extreme environmental conditions, ensuring stable operation in high wind-speed, high-temperature, and dusty environments, while effectively extending the lifespan of the equipment.

Constant Dust Density Control: The design takes into account the impact of sample conditions, ensuring that the dust density inside the chamber remains constant, thereby providing reliable and precise test results.

Self-Diagnosis System: The device is equipped with a self-diagnosis function that helps users quickly identify and resolve equipment faults, minimizing downtime.

Eco-Friendly and Energy-Efficient: The equipment uses environmentally friendly refrigerants and features a low-noise design, meeting green laboratory construction standards, and reducing its environmental impact.

Merkmale Video

Spezifikationen

Temperature Range (°C) 500L/800L/010:RT+5~80
Test Wind Speed (m/s) 500L/800L/010:1~13
Lc1/Lc2:5~35
Talc Powder Consumption (kg/m3) 500L/800L/010:2~4
Rated Power 500L:3;800L/010:4.5;
Lc1:120;Lc2:650
Power Supply 380V±10%,50~60HZ,3/N/PE
DHSD-500 GB 4208-2008
DHSD-800 GB/T 2423.37-2006 Method La
DHSD-010 GJB 150.12A-2009 Dust Blowing Test
DHSD-Lc1 GB/T 2423.37-2006 Method Lc1
DHSD-Lc2 GB/T 2423.37-2006 Method Lc2
