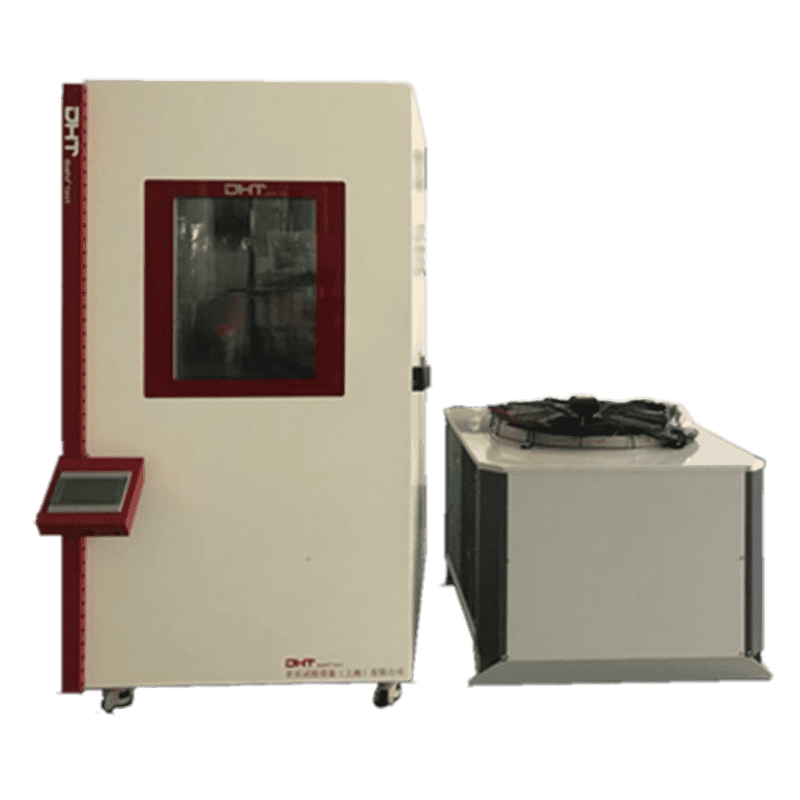

Die DHT® Split-Type Temperaturprüfkammer definiert mit ihrem innovativen Design der externen Kühleinheit die Temperaturprüfung in großem Maßstab neu. Durch die Entkopplung des Kompressors von der Prüfkammer wird die Stellfläche minimiert, während die Leistung in Industriequalität erhalten bleibt. Diese Konfiguration vereinfacht die Installation, ermöglicht einen aufzugkompatiblen Transport und passt sich an räumlich begrenzte Einrichtungen an.
Split-Type Design: By relocating the cooling unit externally, the modular design effectively addresses installation and transportation challenges associated with large equipment size.
Outstanding Performance and Stability: With precise temperature control, the system provides a stable testing environment for samples, ensuring the reliability and accuracy of test data.
Adaptability to Complex Installation Requirements: The modular design allows the equipment to be easily installed in most confined spaces, eliminating concerns about limited space or transportation difficulties, and offering customers more installation options.
Convenient Transportation and Maintenance: The separation of the cooling unit from the test chamber simplifies transportation, installation, and maintenance. This design not only reduces the overall size of the equipment but also enhances mobility and ease of future maintenance.
| Temperature Range (°C) | 0~180；-20~180; -40~180；-70~180 |
| Heating Rate (°C/min) | 4 |
| Cooling Rate (°C/min) | 2 |
| Temperature Fluctuation (°C) | ±0.1~±0.5 |
| Temperature Uniformity (°C) | ±0.5~±1.5 |
| Humidity Usable Temperature Range (℃) | 15~95 |
| Luftfeuchtigkeitsbereich (%RH) | 20~98 |
| Humidity Deviation (%RH) | ±1.0~±3.0 |
| Power Supply | 380V±10%，50HZ，3/N/PE; 220V±10%，50~60Hz，2 Phase |
| Power (kW) | 100L/190L:3;250L:4;335L:6; 500L:9;010L:13;015L:15 |
| Noise Level (dB(A)) | 100L/190L/250L/335L:57; 500L:62;010L/015L:63 |
| Cooling Method | Air Cooling |
