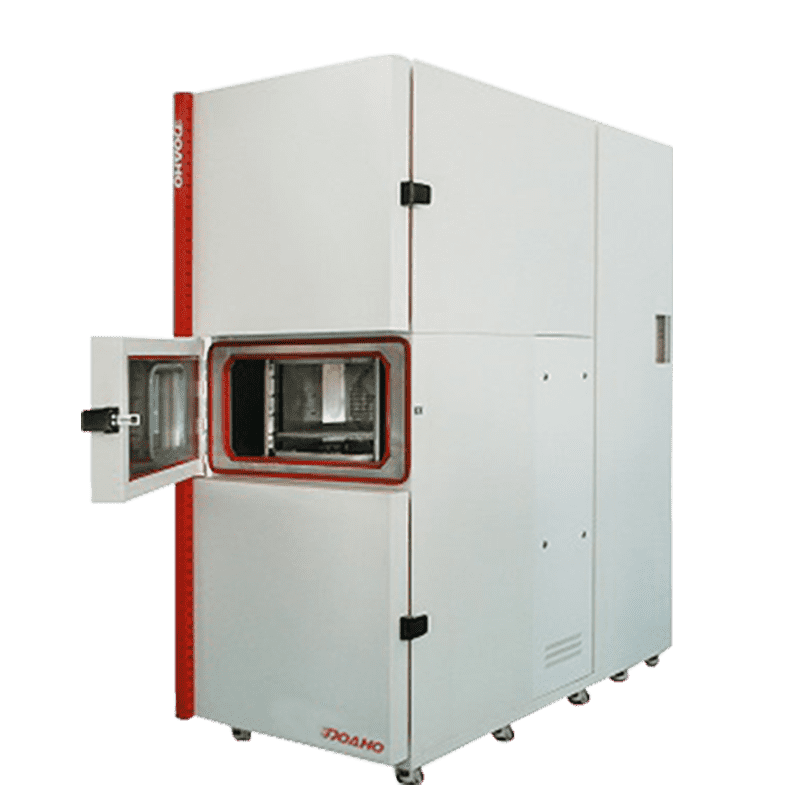

Thermoschock-Testkammer

Vertical Two-Zone Layout: Designed with a vertically stacked hot and cold chamber configuration, optimizing space utilization and facilitating easy operation and maintenance.

Ball-Screw Driven Basket Transfer System: Equipped with a ball-screw drive mechanism to ensure smooth and reliable transfer of the test basket between hot and cold chambers, enhancing stability during testing.

High Load Capacity Basket Design: The two-zone chamber supports a maximum basket load of 20 kg, while the three-zone model accommodates up to 50 kg, meeting a variety of testing requirements.

Precise Temperature and Humidity Control: The hot chamber operates from +50°C to +220°C (optional up to +250°C), and the cold chamber from -80°C to +70°C, offering flexibility for diverse testing scenarios.

Ensured Temperature Uniformity: Optimized airflow design guarantees uniform temperature distribution within the chamber, ensuring accurate and consistent test results.

No Compressed Air Required: The system is designed to operate without an external compressed air supply, simplifying installation and usage while reducing maintenance costs.
