Begehbare Prüfkammer für die chemische Industrie

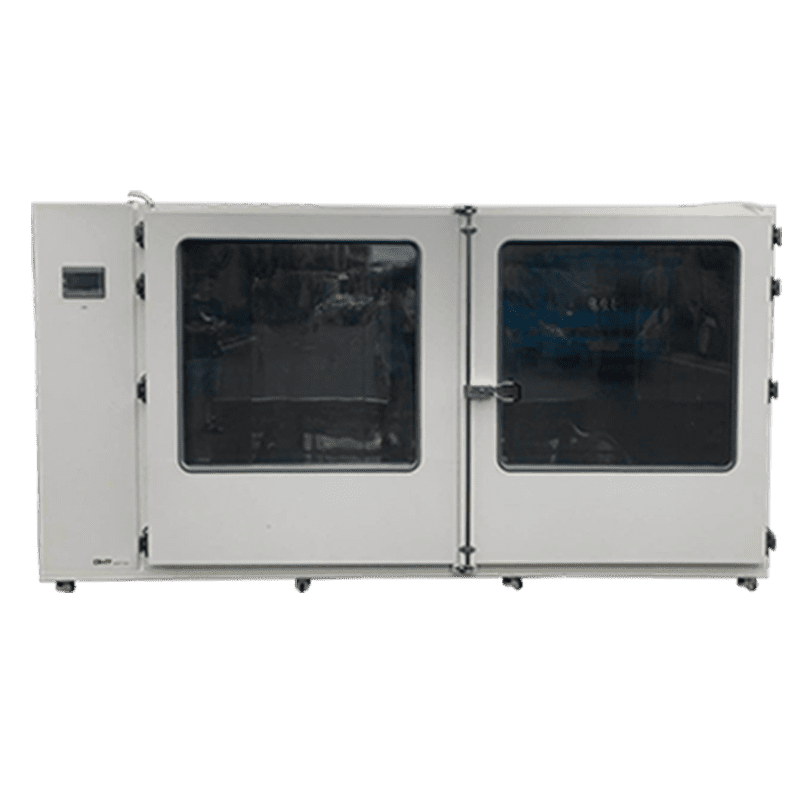

The DHT® Walk-In Test Chamber, specially designed for the chemical industry, integrates high reliability, energy efficiency, environmental friendliness, and intelligent control to meet the performance testing needs of chemical products under extreme environmental conditions. This chamber adopts a modular design, with core components sourced from internationally renowned brands, ensuring long-term stable operation. It is ideal for environmental simulation tests such as high/low temperature, humidity, and aging of various chemical materials. With its outstanding performance and user-friendly design, the DHT® Walk-In Test Chamber has become the ideal choice for reliability testing and quality control in the chemical industry.

Vorteile

Customized Design and Modular Structure The DHT® Walk-In Test Chamber features a modular design, with core components sourced from international brands, ensuring long-term stable operation.

Precise Environmental Control The chamber has a temperature range from 0°C to 85°C, with humidity control ranging from 20% to 98%. Temperature and humidity uniformity are maintained within ±2°C and 1%–3%, respectively.

Intelligentes Kontrollsystem Equipped with an advanced touch-screen color LCD operating system, the chamber supports MODBUS communication interfaces, USB data storage, and network monitoring, enabling remote operation and data management.

Eco-Friendly and Energy-Efficient Design The chamber uses environmentally friendly insulation materials and refrigerants, operates with low noise and water consumption, and meets the standards for green laboratory construction.

Exceptional Durability and Reliability The chamber is constructed using high-efficiency anti-corrosion coatings and aluminum-zinc panels, ensuring stable performance even in harsh environments, with a service life of up to 25 years.

Merkmale Video

Spezifikationen

Temperature Range (°C) 0~180;-20~180;
-40~180;-70~180
Heating Rate (°C/min) 4
Cooling Rate (°C/min) 2
Temperature Fluctuation (°C) ±0.1~±0.5
Temperature Uniformity (°C) ±0.5~±1.5
Humidity Usable Temperature Range (℃) 15~95
Luftfeuchtigkeitsbereich (%RH) 20~98
Humidity Deviation (%RH) ±1.0~±3.0
Power Supply 380V±10%,50HZ,3/N/PE;
220V±10%,50~60Hz,2 Phase
Power (kW) 100L/190L:3;250L:4;335L:6;
500L:9;010L:13;015L:15
Noise Level (dB(A)) 100L/190L/250L/335L:57;
500L:62;010L/015L:63
Cooling Method Air Cooling
