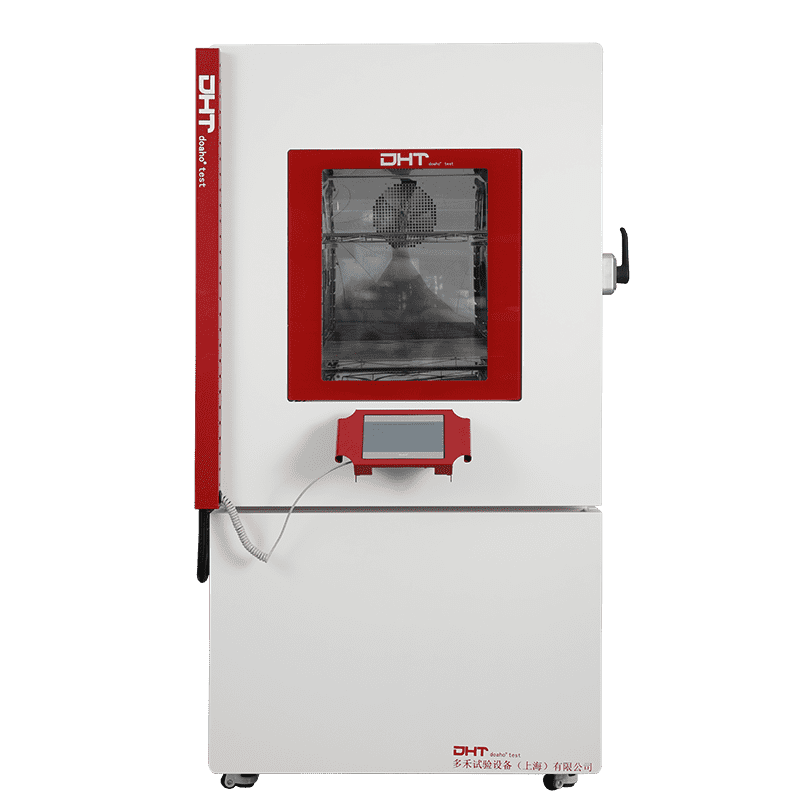

Chambre d'essai à changement rapide de température

The DHT® Temperature Rapid Change Test Chamber is a high-performance device specifically designed for testing the performance of electronic components, automotive electronics, and various materials under high and low temperature conditions. It is widely used in industries such as aerospace, automotive, home appliances, and scientific research.

By simulating extreme temperature fluctuations, this chamber evaluates the reliability and adaptability of products in real-world applications. It meets the testing needs of universities, manufacturing facilities, defense industries, and research institutions alike.

Demande de devis

Avantages

Sample Protection Features: Equipped with anti-condensation and over-temperature protection to ensure the safety of samples during testing.

Flexible Mobility Design: Fitted with height-adjustable caster wheels, allowing easy relocation and positioning of the equipment in various settings.

Built-in Self-Diagnostic System: Includes an internal fault self-diagnosis system to facilitate maintenance and troubleshooting, enhancing overall equipment reliability.

Eco-Friendly Refrigeration System: Utilizes an air-cooled refrigeration system that meets environmental standards while reducing energy consumption.

Optional Network Monitoring: Offers optional network monitoring capabilities for remote monitoring and management.

Optimized Air Circulation: A carefully engineered air circulation system ensures a precise and uniform temperature environment for the test samples.

Vidéo des caractéristiques

Spécifications

5°C/min Rapid Temperature Change Test Chamber – Technical Specifications
Temperature Test Parameters
Temperature Range (°C) -40~180；-70~180
Heating/Cooling Rate (°C/min) 5
Temperature Fluctuation (°C) ±0.1~0.5
Temperature Uniformity (°C) ±0.5~2
Humidity Test Parameters
Temperature Range (°C) 15~95
Humidity Range (%RH)） 20~98
Humidity Fluctuation (%RH) ±1~3
Alimentation électrique 380V±10%，50~60HZ，3/N/PE
Puissance nominale 100L/190L/335L：8/10
600L：11/17；990L/015:23/26
Méthode de refroidissement Water-Cooled / Air-Cooled
10°C/min Rapid Temperature Change Test Chamber – Technical Specifications
Temperature Test Parameters
Temperature Range (°C) -40~180；-70~180
Heating/Cooling Rate (°C/min) 10
Temperature Fluctuation (°C) ±0.3~0.8
Temperature Uniformity (°C) ±0.5~2
Heating/Cooling Rate (°C/min)
Temperature Range (°C) 15~95
Humidity Range (%RH) 20~98
Humidity Fluctuation (%RH) ±1~3
Alimentation électrique 380V±10%，50~60HZ，3/N/PE
Puissance nominale 270L：8/14；480L：16/20；
800L/013:28/34
Méthode de refroidissement Water-Cooled
15°C/min Rapid Temperature Change Test Chamber – Technical Specifications
Temperature Test Parameters
Temperature Range (°C) -40~180；-70~180
Heating/Cooling Rate (°C/min) 15
Temperature Fluctuation (°C) ±0.3~0.8
Temperature Uniformity (°C) ±0.5~2
Temperature Test Parameters
Temperature Range (°C) 15~95
Humidity Range (%RH) 20~98
Humidity Fluctuation (%RH) ±1~3
Alimentation électrique 380V±10%，50~60HZ，3/N/PE
Puissance nominale 270L：12/16；480L：20/24；
800L/013:35/44
Méthode de refroidissement Water-Cooled
