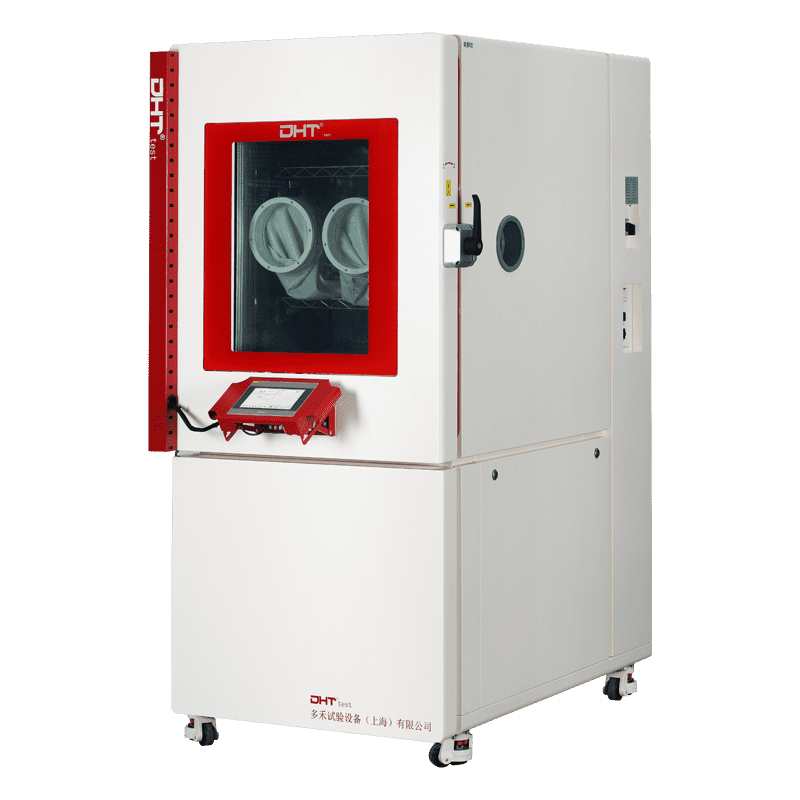

Pharmaceutical Stability Test Chamber

The DHT® Pharmaceutical Stability Test Chamber is engineered in strict accordance with ICH Q1A, GMP, and related regulatory standards, delivering a highly reliable and fully verifiable environment for temperature and humidity control. With a typical operating range of –40°C to +85°C and 10% to 95% RH, and uniformity up to ±0.5°C / ±3% RH, it is ideally suited for long-term, accelerated, and intermediate stability testing, as well as raw material storage, packaging compatibility studies, and new drug development.

Constructed with a high-grade stainless-steel interior and an energy-efficient, eco-friendly refrigeration system, the chamber integrates an advanced microprocessor-based control platform to ensure exceptional temperature and humidity precision (with fluctuations as low as ±0.1°C / ±1.5% RH). It also features real-time data logging, over-temperature alarms, independent temperature limit protection, and optional 21 CFR Part 11–compliant functions, including electronic signatures, audit trails, and tiered user access control.

These comprehensive capabilities ensure data integrity and traceability throughout the testing process, providing pharmaceutical companies with a compliant, accurate, and high-efficiency solution for conducting stability studies across the entire drug lifecycle.

0/5 (0 Reviews)

Benefits

Precise Temperature and Humidity Control: The chamber is equipped with a high-precision temperature and humidity control system, with a typical temperature range from 0°C to 65°C and humidity range from 20% RH to 95% RH, ensuring the stability of the test environment.

Reliable Cooling System: Featuring dual fully enclosed, high-temperature resistant compressor units, the system ensures long-term stable operation of the chamber and supports both constant and programmable operating modes.

Intelligent User Interface: The chamber is equipped with an integrated touchscreen controller for temperature and humidity, supporting both English and Chinese language options. It records historical data and includes interfaces such as RS232, RS485, and USB for convenient data transmission and monitoring.

High-Quality Materials: The interior is made of stainless steel (SUS304), and the exterior is constructed with corrosion-resistant, easy-to-clean spray-painted steel plates, ensuring durability and hygiene.

Adjustable Shelving Design: The built-in shelves are adjustable, facilitating easy sample access and internal cleaning.

Light Simulation Function (Optional): Certain models are equipped with a light system that simulates the effects of different light conditions on pharmaceutical stability.

Features Video

Specifications

Temperature Range (°C) No illumination: 0~65
With illumination: 10~65
Temperature Fluctuation (°C) SD Series/SDP Series: ±0.5
GSP Series: ±1
Humidity Range (%RH) 40~95
Illumination Intensity (LX) 0~6000 (adjustable)
Illumination Error (LX) ≤±500
Power Supply AC 220V±10%, 50Hz
Cooling Method Direct cooling, high-efficiency refrigeration
Compressor Imported fully enclosed compressor
Cooler Heat sink, air-cooled cooler
Temperature and Humidity Control Method Balanced temperature and humidity control
Controller SD Series/SDP Series: Microcomputer control
GSP Series: Programmable controller
Temperature Sensor SD Series/SDP Series: Pt100 platinum resistance
GSP Series: Imported temperature and humidity transmitter
Fan Centrifugal fan
Operating Ambient Temperature (°C) 5~30
Load Tray (Standard) 2 pieces
Safety Features Compressor overheat protection,Overload protection,Low water protection
Over-temperature protection,Electrical short circuit protection
