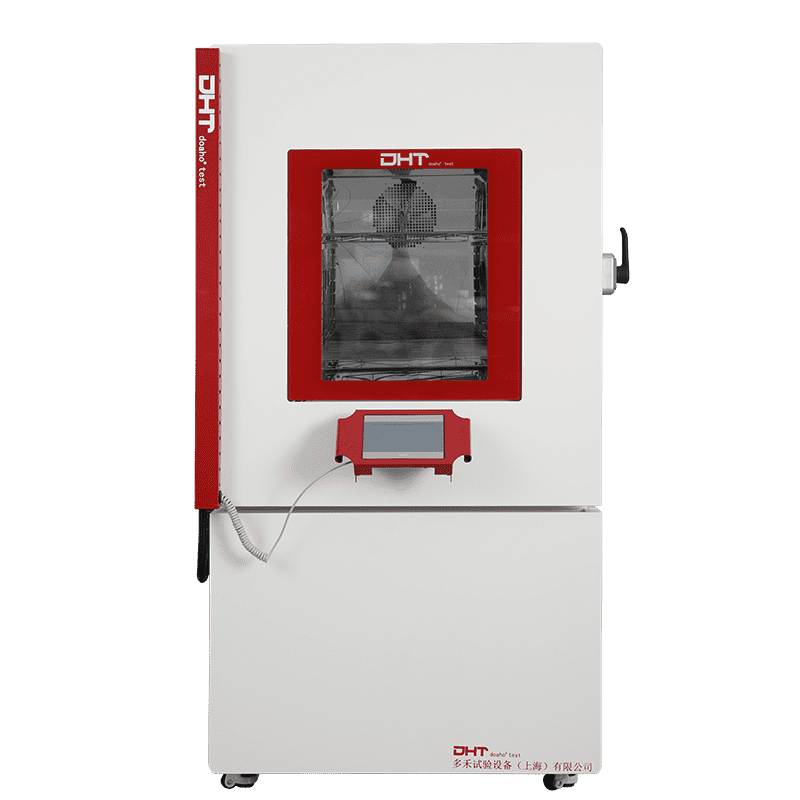

Ultra Low Humidity Chamber

The DHT® Ultra Low Humidity Chamber, developed by the DHT® European R&D Center, is precision environmental simulation devices developed for demanding applications in electronics, electrical engineering, materials science, and aerospace. Designed with a modular, compact structure, the series offers capacities ranging from 16L to 1500L (e.g., DHTSLH-16, DHTSLH-1000), making it suitable for space-constrained laboratories and academic environments.

Leveraging the patented DHSPLCON technology, these chambers achieve extended service life while providing an ultra-wide humidity range of 1%RH–98%RH (with special ultra-low humidity models covering 15%RH–98%RH) and a temperature range of -70°C to +180°C. Temperature stability is maintained at ±0.1°C to ±0.5°C (fluctuation) with uniformity of ±0.5°C to ±1.5°C, and humidity deviation is controlled within ±1.0% to ±3.0%RH, ensuring highly precise and reliable environmental testing.

0/5 (0 Reviews)

Benefits

Precise Environmental Control: The equipment offers an extensive temperature and humidity control range, from -70°C to 180°C for temperature, and 1% to 98% RH for humidity. The temperature fluctuation is as low as ±0.1°C, and the humidity fluctuation is ±1% RH, ensuring the accuracy and repeatability of test data.

Innovative Control Technology: Equipped with the DHSPLCON control technology, this chamber significantly enhances operational efficiency and extends the equipment’s service life, meeting the demands of long-term stable operation.

User-Friendly Interface: Featuring a color LCD touchscreen, the intuitive interface simplifies operation, and the controller’s position can be adjusted based on actual needs, thereby improving user experience.

High Reliability and Durability: Core components are sourced from internationally renowned brands, and the modular design ensures long-term stability and durability, with an expected lifespan of over 25 years.

Comprehensive Safety Protection: The equipment is equipped with a full range of safety protection measures, including over-temperature protection, sample protection, device self-protection, and operator safety, ensuring the safety of both the testing process and the equipment.

Features Video

Specifications

Temperature Range (°C) 0~180;-20~180;
-40~180;-70~180
Heating Rate (°C/min) 4
Cooling Rate (°C/min) 2
Temperature Fluctuation (°C) ±0.1℃ ~±0.5
Temperature Uniformity (°C) ±0.5℃ ~±1.5
Temperature and Humidity Range (°C) 15~95
