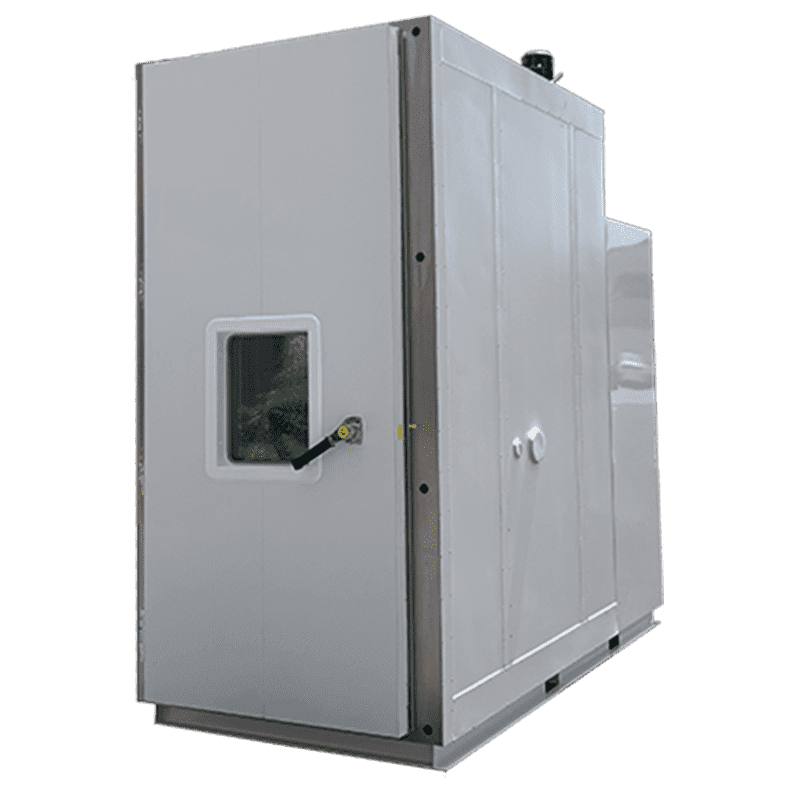

Walk in Stability Test Chamber

The DHT® Walk in Stability Test Chamber is built with durable sandwich panels featuring 304 stainless steel inner walls and eco-friendly thermal insulation, ensuring excellent temperature and humidity uniformity throughout the chamber (±2°C for temperature, 1%–3% for humidity). This level of precision makes it easy to follow a humidity temperature chart to accurately set and monitor the environmental conditions needed for stability testing. The chamber supports a wide range of temperatures from -70°C to +120°C and humidity levels from 20% to 98% RH, with fast temperature changes to meet diverse testing requirements.

Equipped with a high-precision PID touchscreen control and an integrated PLC system, the chamber allows flexible operation modes—fixed-point or programmable—and records real-time data. This ensures precise testing of the temperature throughout the test process, helping maintain consistent and reliable results. Its modular design also allows customization of chamber size and additional options like lighting, UV sterilization, and advanced alarm systems.

0/5 (0 Reviews)

Benefits

High-Precision Testing System: The chamber utilizes the DHT® patented control system, ensuring stable humidity control even under rapid diffusion conditions, making it ideal for tests sensitive to humidity variations.

Sandwich-Structured Design: The outer layer is made of durable, pre-coated colored panels, the middle layer is composed of environmentally friendly thermal insulation materials, and the inner layer is constructed with SUS304 stainless steel, offering excellent thermal insulation and durability.

Diverse Door Options: A variety of door types are available, including single-suspension doors, sliding doors, swing doors, and double-opening doors, to meet the diverse needs of laboratory space and operational requirements.

Automatic Drainage System: The chamber is equipped with an automatic drainage system that ensures condensation water is efficiently removed, keeping the interior dry and extending the equipment’s service life.

PLC Management Control System: Featuring an integrated PLC control system with a user-friendly interface, this system makes operation simple while providing real-time monitoring of the chamber’s operational status.

Customizable Accessories: Various specialized accessories can be added based on user requirements, allowing the chamber to meet specific testing needs.

Features Video

Specifications

Maximum Temperature (°C) 80, 95, 120
Minimum Temperature (°C) 0, -20, -40, -70
Humidity Range (%RH) 20~98
Test Chamber Door (mm) Single door: (600~1200) × 1900

Double doors: (1200~5000) × 2000
